Polycarbonate Sound Barrier – Fire, Impact and Weather Resistance

Polycarbonate sound barrier, with superior impact resistance, wind pressure resistance, anti-fire property and 95% light transmission, is a good acoustical insulation. It can substantially abate noise pollution while preserving visual views and long life span. Generally, the transparent polycarbonate sound barrier is applied to railway sound barrier, offices and workrooms noise control, subway sound barrier, urban roads noise barrier, bridge sound barrier and highway sound barrier.
Note: Any color can be customized according to your requirements.

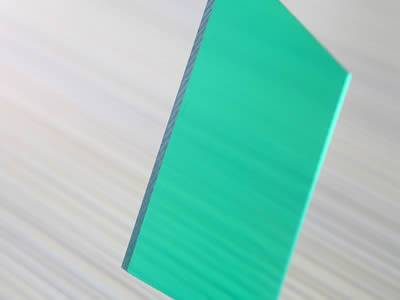

A piece of green solid polycarbonate sheet for sound barrier.
PSB-01: Solid polycarbonate sheet for sound barrier has high light transmission.

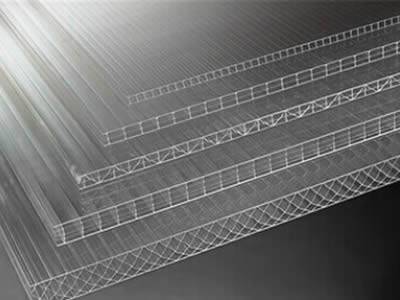

Five pieces of multiwall polycarbonate sheet for sound barrier.
PSB-02: Multiwall polycarbonate sheet for sound barrier can improve impact resistance.
Polycarbonate Sound Barrier Specifications
Item Thickness
(mm)
Weight
(kg/m2)
Min. Bending Radius
(mm)
Width
(mm)
Length
(mm)
Color
PSBS-01 1.5 1.8 180 1220
1560
1820
2100
Up to 3100 clear
blue
green
opal
blue-green
light-green
opal-light
bronze (brown)
PSBS-02 2.0 2.4 300
PSBS-03 3.0 3.6 450
PSBS-04 3.5 4.2 520
PSBS-05 4.0 4.8 600
PSBS-06 5.0 6.0 750
PSBS-07 6.0 7.2 900
PSBS-08 7.0 8.4 1050
PSBS-09 8.0 9.6 1200
PSBS-10 10.0 12.0 1500
PSBS-11 12.0 14.4 1650
Note: Any size can be customized according to your requirements.

Polycarbonate sound barrier features

  • High sound insulation feature.
  • High light transmission.
  • Strong impact resistance.
  • Weather resistance and UV protection.
  • Anti-scratching and anti-abrasion properties.
  • Low maintenance.
  • Light weight.

Polycarbonate sound barrier installation

Transparent polycarbonate sound barrier sheets are installed on any solid flames including aluminum, steel, plastic, wood or other materials. Compared with conventional concrete sound barrier, polycarbonate sound barrier installation can decrease installation time and cost to a great degree.

Polycarbonate sound barrier applications

The transparent polycarbonate sound barrier with light weight is significant for railway sound barrier, offices and workrooms noise control, metro sound barrier, urban roads noise barrier, highway sound barrier and bridge sound barrier applications.

Polycarbonate sound barrier with anti-birds patterns is installed in the highway.
PSB-03: Polycarbonate sound barrier with anti-birds patterns in highway can significantly lower noise level as well as not injury birds and natural environment.

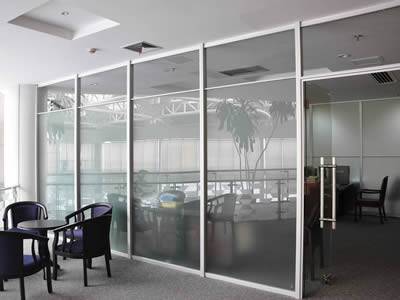

Polycarbonate sound barrier is installed in the office.
PSB-04: Polycarbonate sound barrier in office plays important roles as sound insulation and room divider at the same time.
Polycarbonate sound barrier is installed between urban roads and buildings.
PSB-05: Polycarbonate sound barrier can decrease noise of trucks, cars and other vehicles to protect residents from tolerating terrible noise.

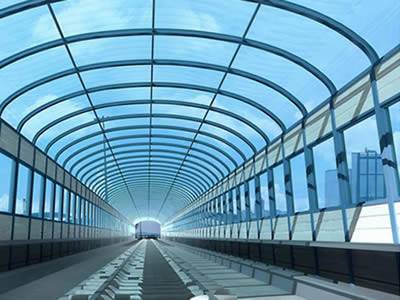

Blue polycarbonate sound barrier is installed on the subway.
PSB-06: Blue polycarbonate sound barrier can increase the aesthetic appearance of the subway while playing an important sound barrier function.
