Aluminum Sound Barrier – Nice Noise Absorbing and Reducing Ability

Aluminum sound barrier, made of aluminum plate and fillings such as EPDM, fiber glass or aluminum foam, is a perfect type of barrier fence. With high durability, flexibility and lightweight, aluminum sound barrier has excellent noise absorbing and weakening performance. It has a wide range of applications and often is used for providing silent life for surrounding residents. Usually, it's applied to highway, railway, subway, factory, construction site, bridge and residential areas as sound barrier.

Besides, aluminum sound barrier has different shapes:

  • Top arc-shaped noise barrier.
  • Arc-shaped barrier.
  • Common shaped noise barrier.
  • Top knuckling barrier.
  • Knuckling barrier.
  • Irregular shaped barrier.

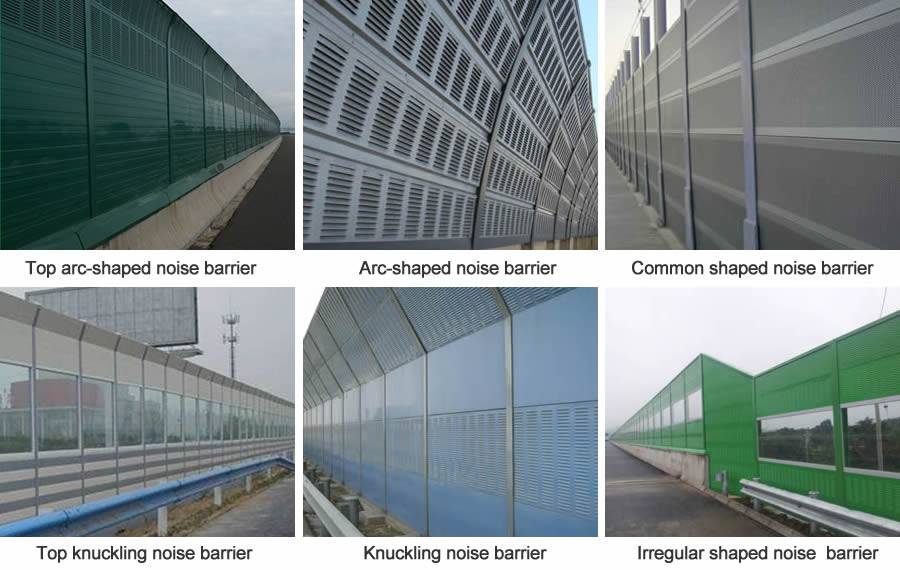

Six different aluminum sound barrier types.
ASB-01: All of six different aluminum sound barrier types can absorb and reduce overmuch noise effectively.

Aluminum noise barrier specifications

  • Metal material: aluminum steel.
  • Three layers structure:
    • The first layer is perforated aluminum sheet.
    • The second layer is sound absorbing material infill.
    • The third layer is non-perforated aluminum sheet.
  • Metal plate thickness: 0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm.
  • Barrier forming thickness: 80 mm, 100 mm, etc.
  • Length: 1960 mm, 2460 mm.
  • Width: Commonly is 500 mm.

Note: You can custom according to your requirements.

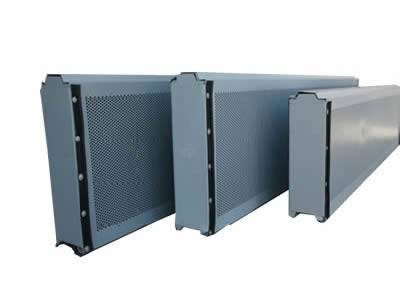

Three pieces of perforated aluminum sound barrier with round micro holes pattern.
ASB-02: The first layer of aluminum sound barrier with round and micro holes.

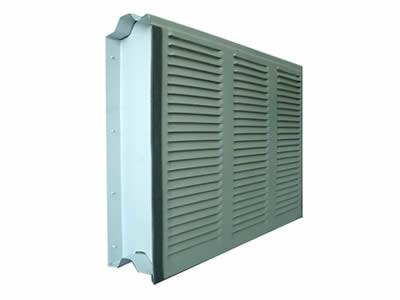

A piece of perforated aluminum sound  barrier with louver holes pattern.
ASB-03: The first layer of aluminum sound barrier with louver holes.

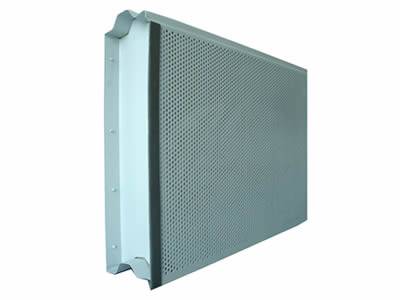

A piece of perforated aluminum sound barrier with even surface.
ASB-04: The first layer of aluminum sound barrier with even surface.
A piece of perforated aluminum sound barrier with uneven surface.
ASB-05: The first layer of aluminum sound barrier with uneven surface.

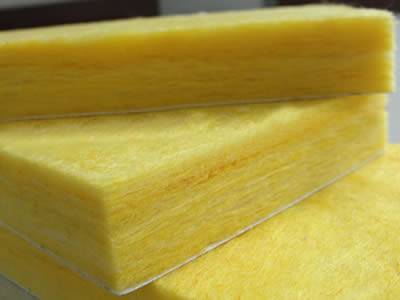

Four pieces of yellow sound absorbing  material infill on the ground.
ASB-06: The second layer of aluminum sound barrier with aluminum foam material infill.

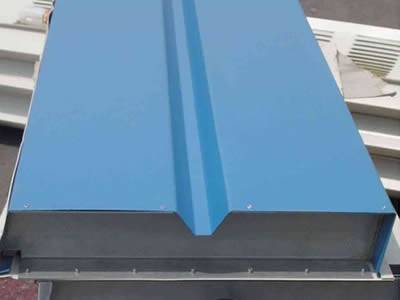

Aluminum sound barrier with blue non-perforated aluminum sheet is being shown.
ASB-07: The third layer of aluminum sound barrier with non-perforated sheet.

Aluminum noise barrier features

  • Perfect sound insulation effect.
  • Anti-corrosion property and rust resistance.
  • Durability.
  • Flexibility.
  • Easy installation.

Aluminum noise barrier package

We adopt two exquisite package ways to cater for most of requirements of our customers:

  • The first type is that we bundle ten aluminum sound barrier sheets into a part by strong plastic rope. And then putting them on the pallet.
  • The second type is that every piece aluminum noise barrier is packaged by bubble plastic film and we will put two wooden boards respectively in top and bottom of every sheet. Of course, two wooden boards and a piece aluminum sound barrier are packaged into a small part. Finally, every ten small parts is winded by strong tapes into a big part.

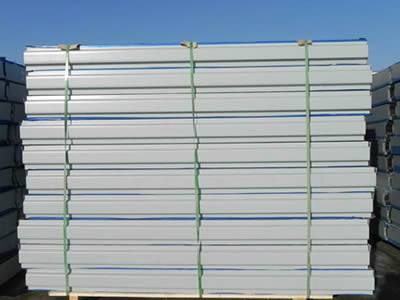

There are lots of aluminum sound barrier sheets which are packaged by plastic rope and pallet.
ASB-08: Strong plastic rope package can reduce space and pallet package can protect serious impact during transportation.
There are lots of aluminum sound barrier sheets which are packaged by wooden boards and tapes.
ASB-09: Wooden boards package can protect impact. Bubble plastic film package can protect water and vibration. Tapes package can reduce space.

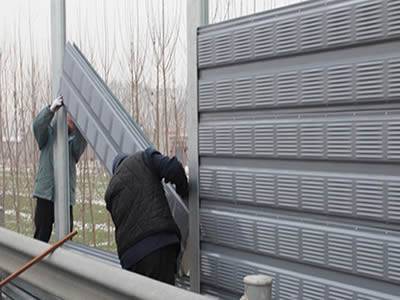

Some people are fixing aluminum sound barrier sheets to H post.
ASB-10: H post with high stability can fix aluminum noise barrier sheets effectively and the installation way can give aluminum sound barrier a long span.

Aluminum noise barrier installation

Aluminum noise barrier installation follows three easy steps:

  1. Fixing H post on the concrete ground.
  2. Fixing aluminum noise barrier panels in the space between two posts.
  3. Fixing the top of H post.

Aluminum noise barrier applications

Perforated aluminum sound barrier has a wide range of applications and often is used for providing silent life for surrounding residents. It is significant for highway, railway, metro, factory, construction site, bridge and residential areas sound barrier.

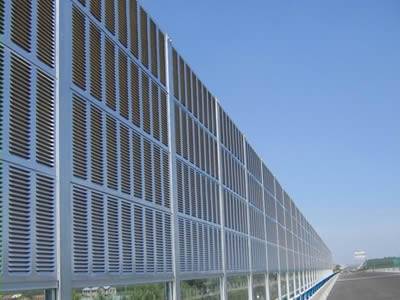

Aluminum sound barrier is installed between the highway and residential areas.
ASB-11: Aluminum sound barrier can lower noise to provide quiet environment for residents when it's installed between highway and residential areas.
Aluminum sound barrier is installed in the railway.
ASB-12: Aluminum sound barrier can absorb and weaken train noise and bring quiet and beautiful environment to surrounding residents and passengers.
