Acrylic Sound Barrier Gives You an Interesting and Nice Journey

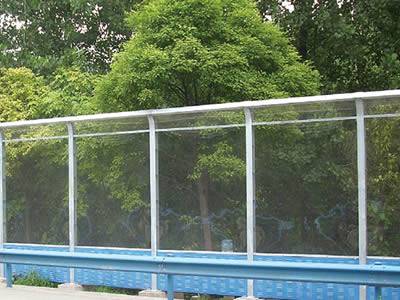

Acrylic sound barrier exists between trees and roads.
ASB-01: Acrylic sound barrier can be applied to noise areas to absorb and reduce noise.

Acrylic sound barrier, with advantages of reflecting traffic noise and adjustable angle to adapt to surrounding environment, can bring 92% light transmission. In addition, it has a hardened surface and anti-graffiti and anti-scratching properties. The transparent acrylic sound barrier still can keep clear after experiencing a series of terrible weather conditions and sunlight. Sometimes, we can combine acrylic sound barrier and other sound barriers as a whole to install to improve beauty and insulation effect. It's significant for freeways sound barrier, bridges and subways sound barrier, railways and highways sound barrier, urban roads and offices noise barrier and other places where need sunlight while blocking noise out.

Acrylic sound barrier specifications

  • Length: 1850 mm, 2450 mm, 3100 mm.
  • Width: 1250 mm, 1500 mm.
  • Thickness: 15 mm, 18 mm, 20 mm, 25 mm, 30 mm.
  • Colors: clear, milky, opal, black, green, etc.
  • Packaging: PE film and pallets for safe delivery.

Note: Special shapes, sizes or thicknesses are available according to your requirements.

Acrylic sound barrier features

  • High transparency.
  • Good sound Insulation feature.
  • Anti-scratching and anti-graffiti properties performance.
  • High rust resistance and anti-corrosion property.
  • Anti-fire property performance.
  • Low maintenance.
  • Aesthetic appearance.
  • Adjustable angle.
  • Long life span.
  • Color diversity.
Several clear acrylic sheets with different colors on yellow background.
ASB-02: These are clear acrylic sheets with different colors.

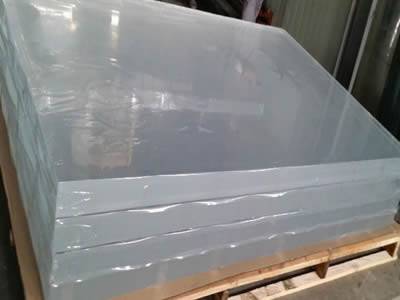

Four clear acrylic sheets are wrapped by PE film respectively and then put them on the pallets.
ASB-03: PE film package can protect internal rain or water. Pallets package can protect excessive external impact and vibration.

Acrylic sound barrier package

We adopt exquisite package to transport transparent acrylic sound barrier. Firstly, we will wrap PE film for every acrylic sheet in order to protect rain or water. And then, we will put these acrylic sheets onto the pallets in order to protect excessive impact and vibration.

Acrylic sound barrier installation

Transparent acrylic sheets are installed on any solid flames including aluminum, steel, plastic, wood or other materials. Usually, it needs a lot shorter time to install acrylic sound barrier than concrete noise barrier or others.

Acrylic sound barrier applications

Transparent acrylic sheets can be used as freeways and subways sound barrier, overpasses and bridges sound barrier, railways and highways sound barrier, urban roads and offices noise barrier and other places where need sunlight while blocking noise out.

Combination of white acrylic sound barrier and pc sound barrier forms an overall sound barrier.
ASB-04: Combination of white acrylic sound barrier and PC sound barrier in highway is used to reflect traffic noise and brings aesthetic appearance to passengers.

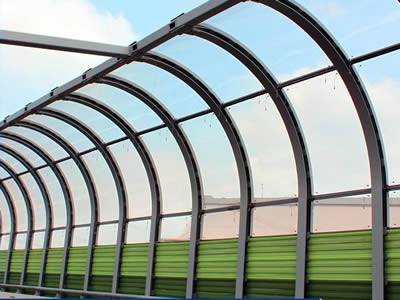

Acrylic sound barrier with nylon string in acrylic sheet is installed between roads and residents.
ASB-05: Acrylic sound barrier with nylon string can bring better protection of low noise and beauty for residents.
Blue acrylic sound barrier is installed in the office.
ASB-06: Blue acrylic sound barrier in office can lower noise and separate different functional areas.
Blue acrylic sound barrier with the best suitable angle is installed on the bridge.
ASB-07: Blue acrylic sound barrier with suitable angle can decorate the bridge and provide low-noise environment for passengers.
